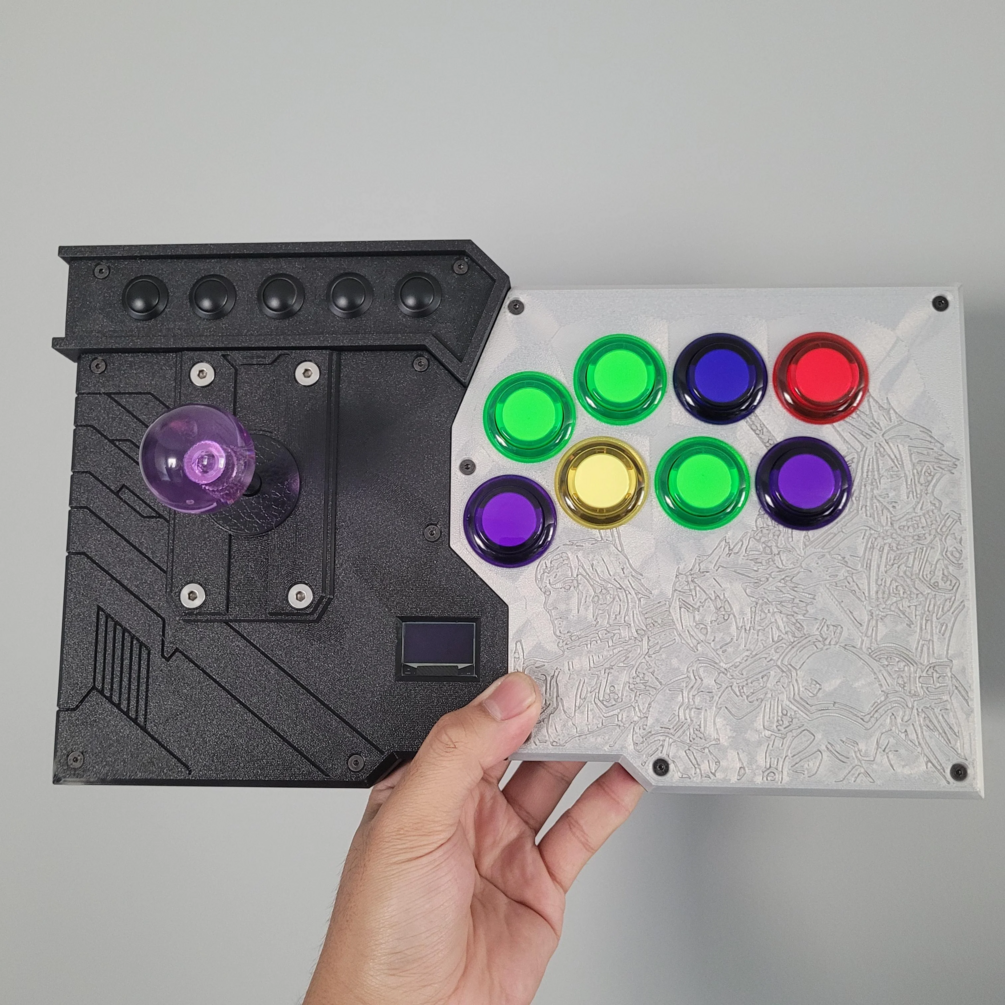

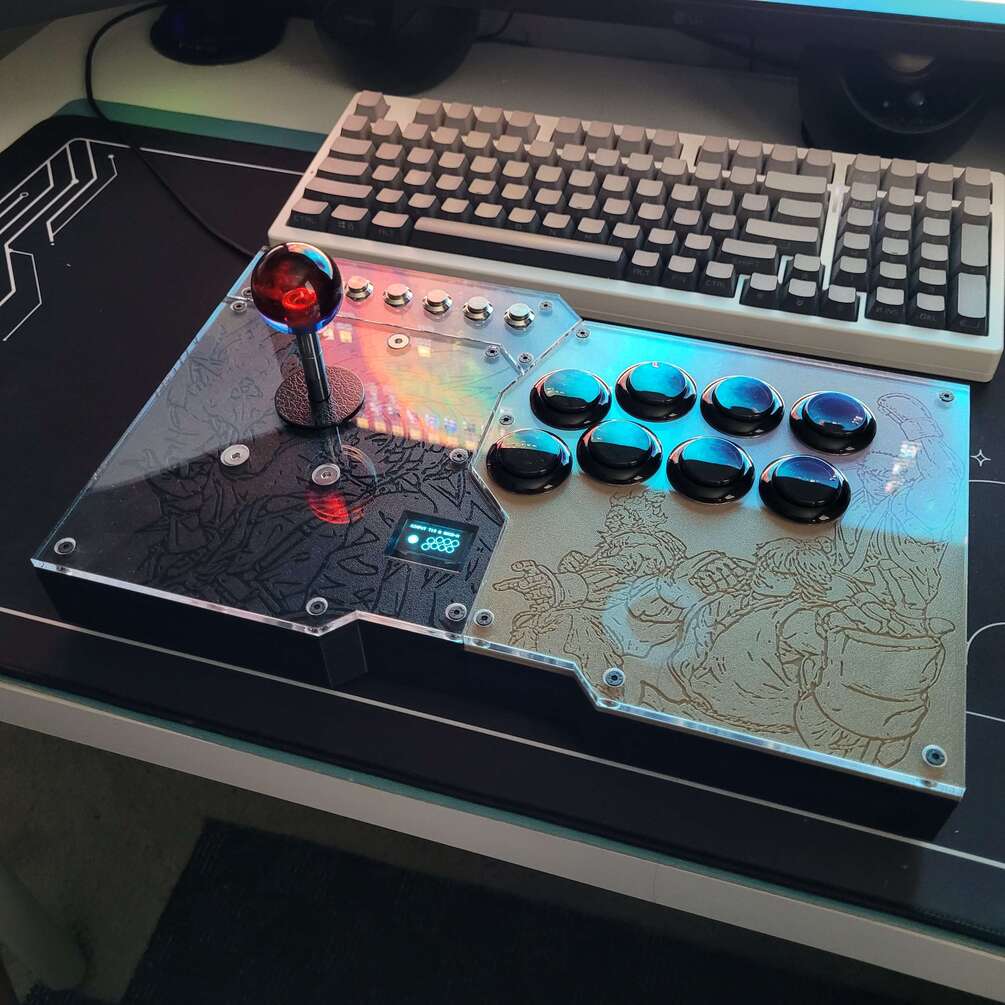

3D Printed FightStick v3.0 - MojuBox, the modular FightStick STL file set. Swappable Hitbox or Joystick layout + More button layout choices

Straight up an upgrade from v2.

as usual FOR PERSONAL USE ONLY. DO NOT REPRODUCE FOR THE INTENT OF SELLING
but you already know that :'> <3

Face plates NOT COMPATIBLE WITH V2, im sorry.

Designed to fit most printers, if you have a print bed of 210mmx210mm or bigger.. It will fit.

Assembly instructions and Materials in this Reddit post

Wiring Guide here: https://youtu.be/4JSxszhdwqI

Don't want to print it but still want it? You can order a pre-built one from my ETSY HERE!

This product is constantly being updated and any new layout added here in the future will all be available for all users, old and new.

Overall size: 330mmx200mmx50mm OR 13inx7.25inx2in

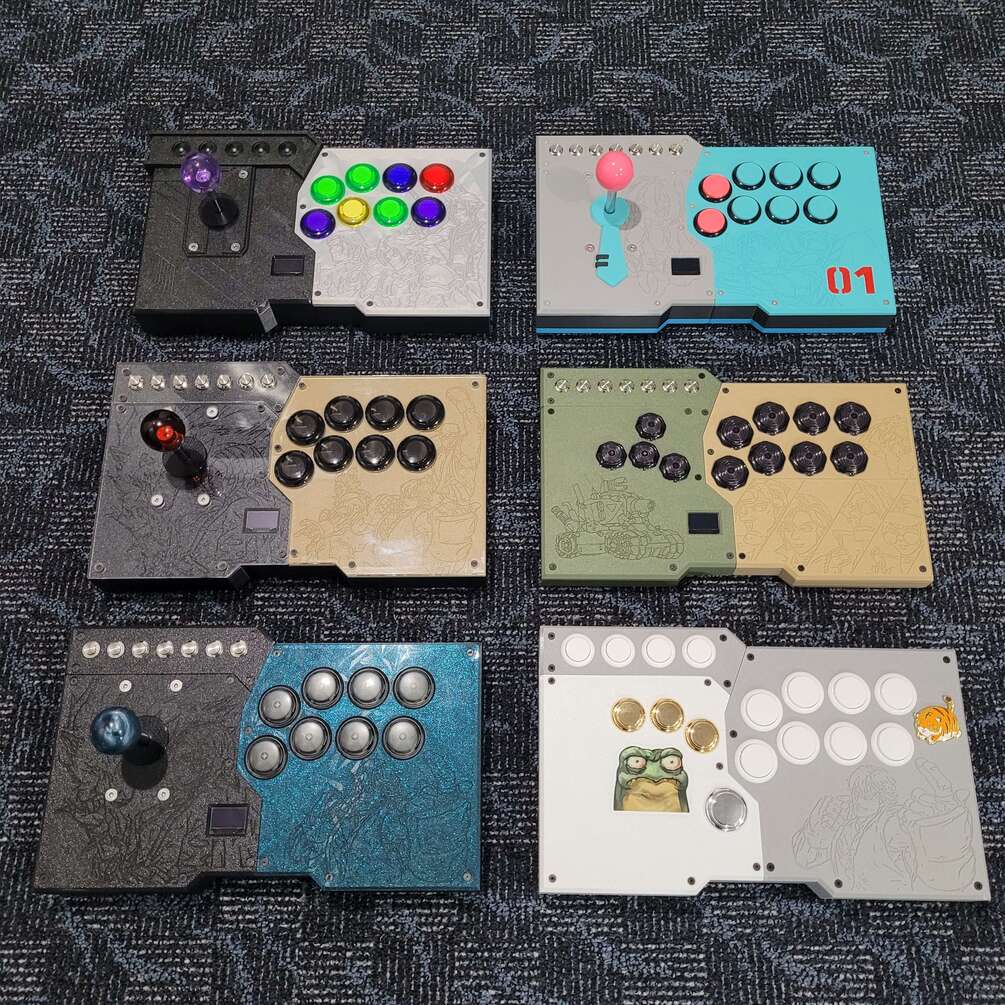

BUILD YOUR OWN FIGHTSTICK, pick what layout you want to use for each 3 parts of the face of the stick

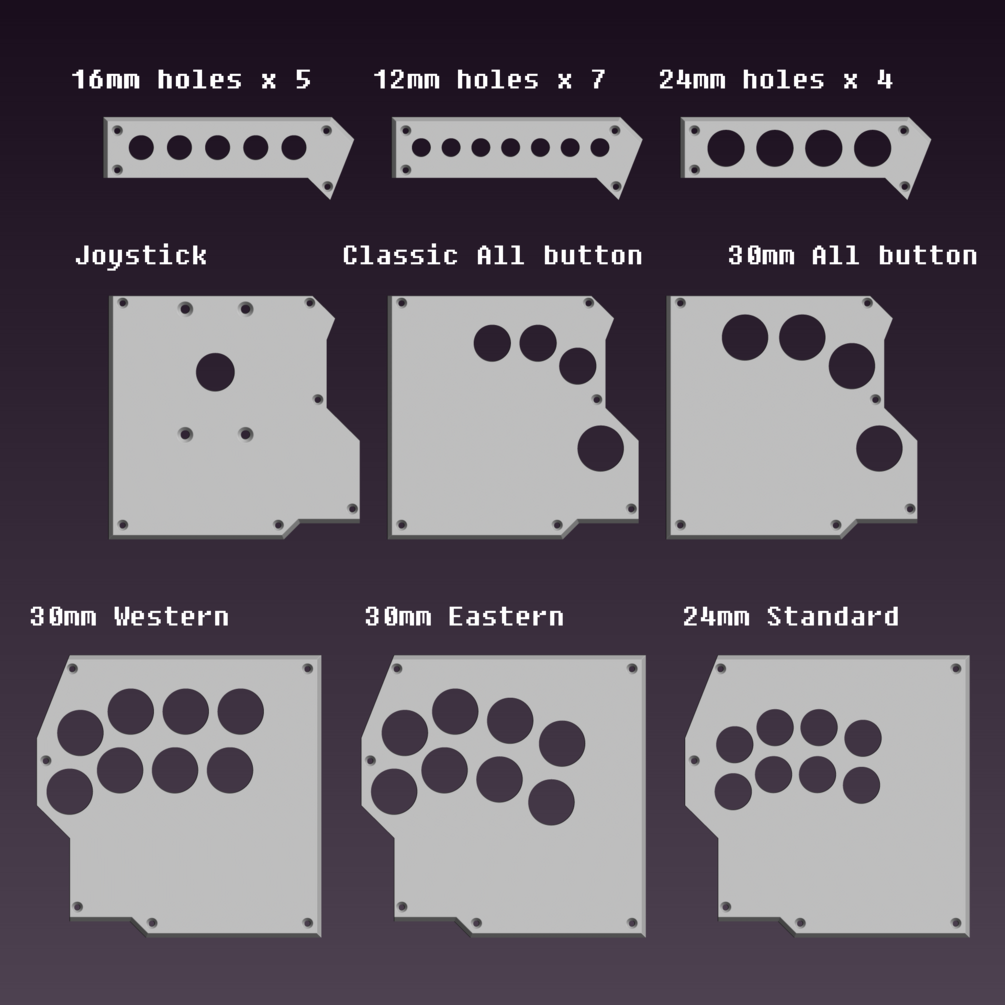

Choices are as follows:

• Menu buttons
  • 16mm holes x 5
  • 12mm holes x 7
  • 24mm holes x 4
  • KB Style x 7
• Directional Control options

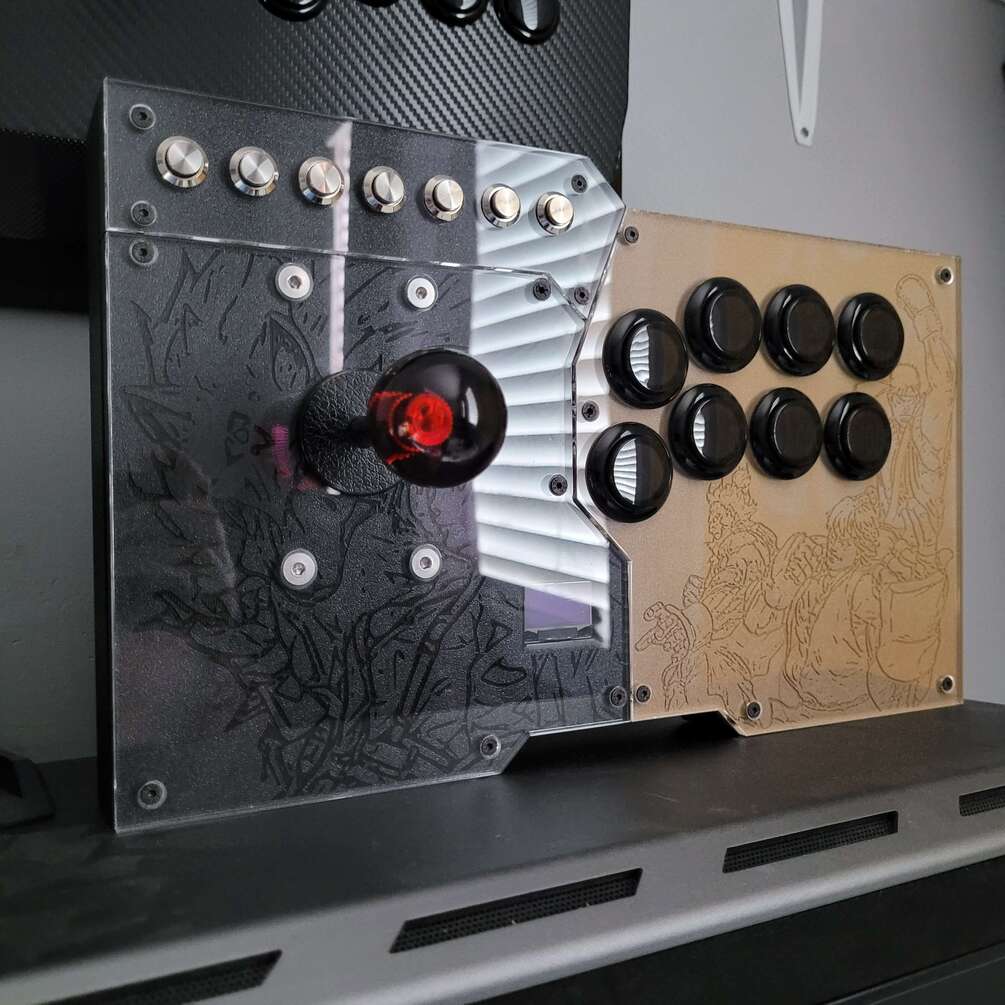

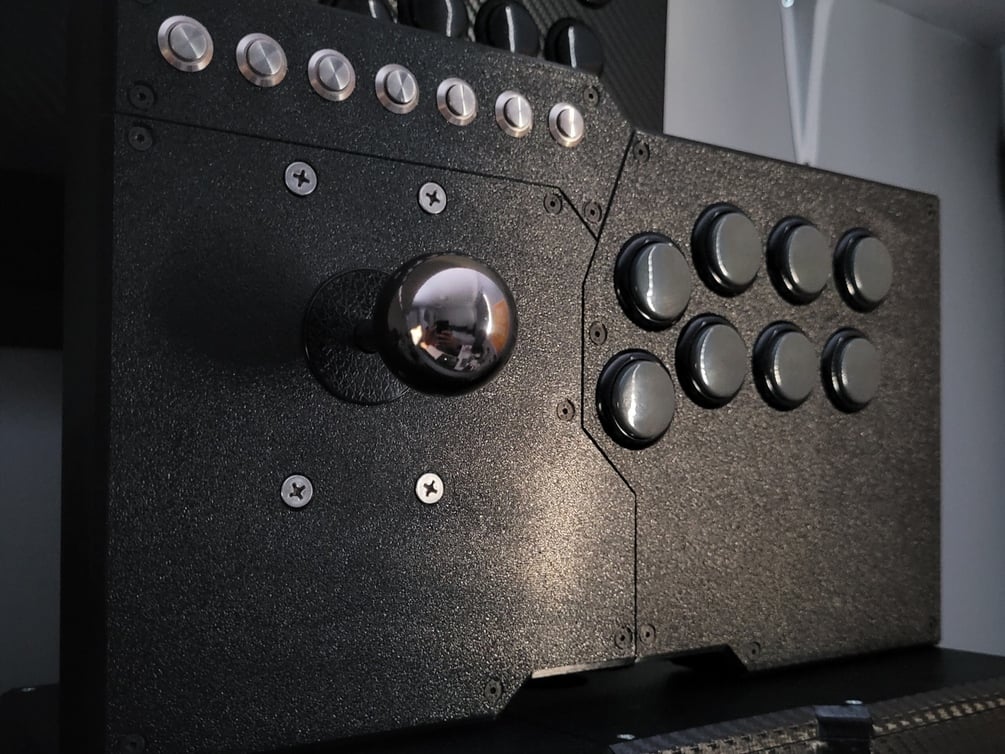

  • Joystick Style (sanwa sticks)

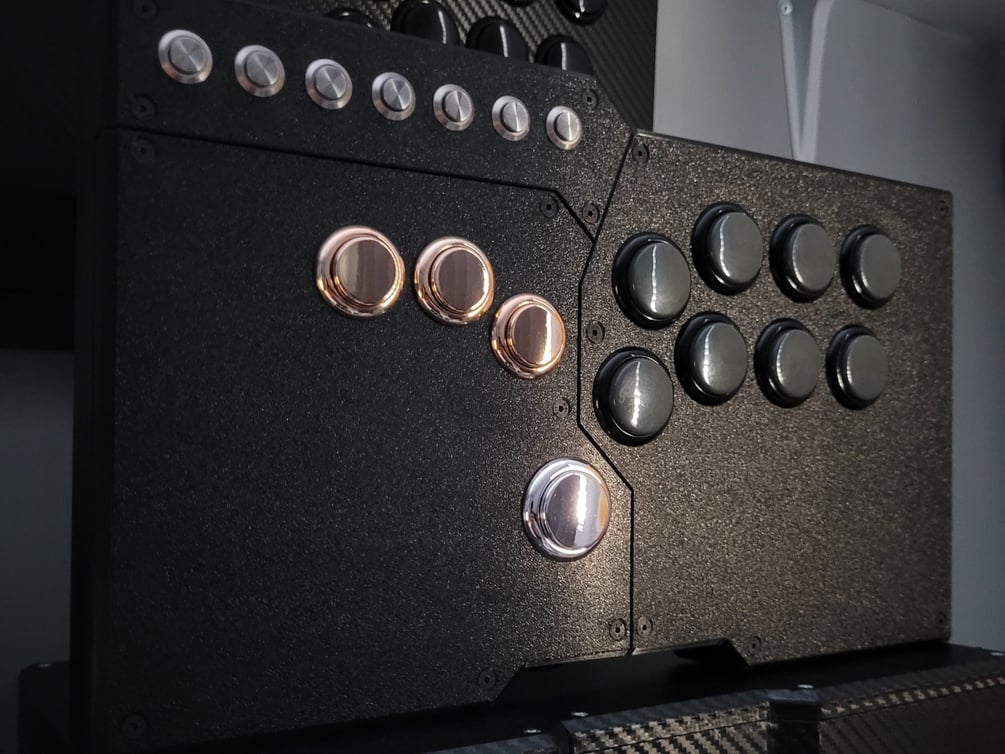

  • Classic All button (24mm left/down/right keys and 30mm up key, classic layout)
  • 30mm All button
  • ALL 24mm WASD Style
  • 24mm+30mm WASD Style
  • ALL 30mm WASD Style
  • KB style
  • Korean Lever Style (You will need to make the korean box version which is 10mm taller than original.)
• Button Layout Options
  • 30mm Western (commonly on quanba and vitrix sticks)
  • 30mm Eastern (slagcoin said its on old Sega cabinets but I usually see this in Etokki sticks)
  • 24mm Standard A and B (commonly found on HitBox)
    • A - adjusted, attack buttons and directional buttons are slightly spaced.
    • B - attack buttons positioned closer to the directional buttons, adheres to the original all button layout closer.
  • KB Style

Changelog from v2

• Improved base separation for a stronger snap-on(super glue still required) type of assembly.
• Additional separations on the face of the stick to allow modularity.
• More screw points on the base
• More options for different layouts as described in the choices above.
• Transferred the position of the USB C slot to the top of the stick for a safer placement.
• Structural improvements.

For Layout request, questions and Suggestions
message me on my Instagram here: https://www.instagram.com/van.jo.bi/ or shoot me an email at bitoy.vangelo@yahoo.com
